Belden 1855P Plenum SDI Coaxial Cable 1855P - Gray - 1000 Foot
- Brands Belden
- Product Code:BL-1855P-1000GY
- Availability:In Stock
-
$1,421.90

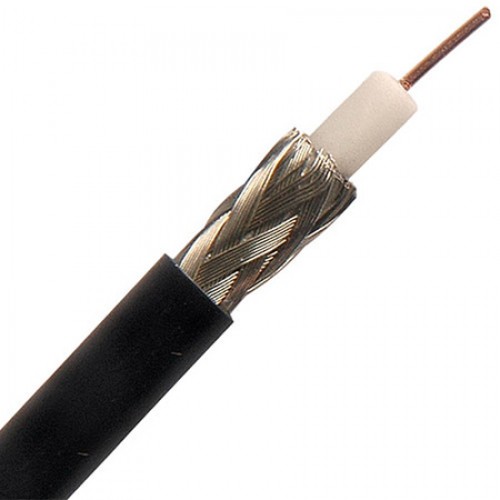

23 AWG solid .023" bare copper conductor, gas-injected foam FEP insulation, Duofoil (100% coverage) plus a tinned copper braid shield (95% coverage), flexible Flamarrest jacket.
Features:
- Physical Characteristics
- Conductor (AWG): 1 Coax, 23 AWG, Solid BC - Bare Copper 0.023" Dia.
- Total Number of Conductors: 1
- Insulation: Gas-injected FEP - Foam Florinated Ethylene Propylene 0.102" Dia.
- Outer Shield Material: Duofoil Aluminum Foil-Polyester Tape-Aluminum Foil 100 (% Coverage), Braid TC - Tinned Copper 95 (% Coverage)
- Outer Jacket Material: Flamarrest LS PVC - Low Smoke Polyvinyl Chloride
- Overall Nominal Diameter: 0.159 in.
- Color: Gray
- Mechanical Characteristics
- Operating Temperature Range: -20°C To +75°C
- UL Temperature Rating: 75&feg;C
- Bulk Cable Weight: 21 lbs/1000 ft.
- Max. Recommended Pulling Tension: 40 lbs.
- Min. Bend Radius/Minor Axis: 1.500 in.
Applicable Standards and Environmental Programs - NEC/(UL) Specification: CMP
- CEC/C(UL) Specification: CMP
- EU Directive 2011/65/EU (ROHS II): Yes
- EU CE Mark: Yes
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2002/95/EC (RoHS): Yes
- EU RoHS Compliance Date (mm/dd/yyyy): 03/28/2008
- EU Directive 2002/96/EC (WEEE): Yes
- EU Directive 2003/11/EC (BFR): Yes
CA Prop 65 (CJ for Wire and Cable): Yes - MII Order #39 (China RoHS): Yes
- RG Type: Sub-miniature 59/U
- UL Flame Test: UL910 Steiner Tunnel
- CSA Flame Test: FT6
- Suitability - Indoor: Yes
- Suitability - Aerial: Yes - Black only.
- Sunlight Resistance: No
- Plenum (Y/N): Yes
- Non-Plenum Number: 1855A
Electrical Characteristics - Impedance (Ohm): 75
- Inductance (µH/ft): 0.300
- Capacitance (pF/ft): 16.300
- Nominal Velocity of Propagation: 80.000%
- Nominal Delay: 1.22 (ns/ft)
- Nom. Conductor DC Resistance at 20°C (Ohm/1000 ft): 20.100
- Nominal Outer Shield DC Resistance at 20°C (Ohm/1000 ft): 3.700
- Max. Operating Voltage - UL: 300 V RMS
- Minimum Return Loss: 23 dB (5 MHz - 1600 MHz), 21 dB (1601 MHz - 4500 MHz)
