Belden 8454 4-Conductor Rubber Jacket 300V Portable Cordage - Black - 500 Foot

A portable cord (also known as portable cordage, flexible cord, or extension cord) is a cable with multiple conductors used for temporary electrical power connections requiring flexibility. The cord can be employed in a range of applications, such as operating motors in small and large tools, equipment, power extensions, home appliances, and machinery.Portable cords may be used in commercial, industrial and residential applications. Some are used on job sites where resistance to oil, chemicals, and abrasion is essential in extreme environments - both the heat and the cold, outside or inside. Additionally, some portable cords can be water-resistant or water-submersible. Portable cords are commonly used in a range of facilities, such as construction sites, mills, mines, sports complexes, or even marinas.

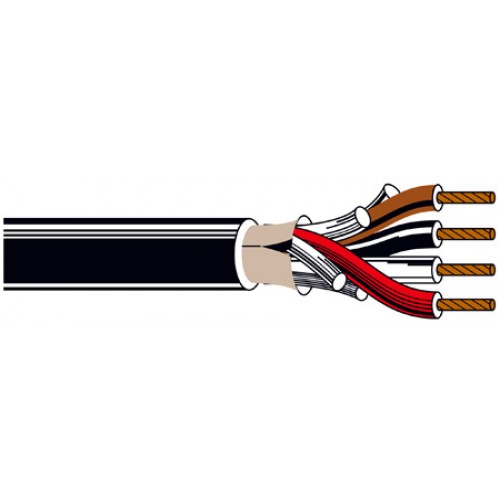

4-conductor rubber jacket, 300V, 60 degrees C, paper tape separator, smooth jacket, style 4097, color code: black, white brown, red.

Specifications:

• Conductor AWG:
• # Conductors: 4
• AWG: 18
• Stranding 41x34
• Conductor Material:TC - Tinned Copper
• Total Number of Conductors: 4
  Insulation Material:
• Insulation Material: EPDM - Ethylene Propylene Diene Monomer Rubbe
• Wall Thickness (mm): 0.4572
  Outer Shield
• Outer Shield Material: Unshielded
  Outer Jacket Material
• Outer Jacket Material: Rubber
• Nom. Wall Thickness (mm): 0.9144
  Overall Cable
• Overall Cabling Fillers: Jute
• Overall Cabling Color: Black, White, Brown, Red
• Overall Cabling Separator Material: Paper Tape
• Overall Nominal Diameter: 6.731 mm
  Mechanical Characteristics (Overall)
• UL Temperature Rating: 60 degrees C
• Bulk Cable Weight: 74.410 Kg/Km
• Max. Recommended Pulling Tension: 364.752 N
• Min. Bend Radius/Minor Axis: 69.850 mm
  Applicable Specifications and Agency Compliance (Overall)
• AWM Specification: UL Style 4097
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 10/13/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire & Cable): Yes
• MII Order #39 (China RoHS): Yes
  Plenum/Non-Plenum
• Plenum (Y/N): No
  Electrical Characteristics (Overall)
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 5.6 Amps per conductor @ 25ÝC
• Dielectric Withstand Voltage: 1500 V AC Applied for 1 Min.

Item Includes:

• 1X 500' Spool

Warranty:

• 10 Years
