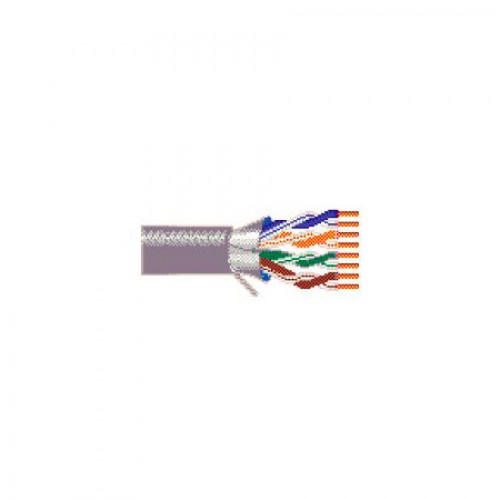

Belden 2413F 4/23 Enhanced Category 6 Nonbonded-Pair ScTP Cable - 1000 Foot
- Brands Belden
- Product Code:BL-2413F-1000
- Availability:In Stock
-
$1,342.60
CAT6+, 4-Pair, F/UTP-Foil Shielded, Plenum-CMP, Premise Horizontal Cable, 23 AWG Solid Bare Copper Conductors, Polyolefin Insulation, Patented X-Spline, Overall Beldfoil Shield, PVC Jacket
Suitable Applications: Networking Horizontal Cable, HDBaseT, 1000Base-T (Gigabit Ethernet), 100Base-T (Fast Ethernet), 10Base-T (Ethernet), 100BaseVG, ANYLAN, 155ATM, 622ATM, ANSI.X3.263 FDDI TP-PMD, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, Noisy Environments, 250 MHz Category 6
Specifications:
- Storage Temperature Range: -20°C To +75°C
- Installation Temperature Range: +5°C To +50°C
- Operating Temperature Range: -20°C To +75°C
- Bulk Cable Weight: 49 lbs/1000 ft.
- Max. Recommended Pulling Tension: 25 lbs.
- Min. Bend Radius/Minor Axis: 1 in.
- Min. Bend/Installation: 3 in.
