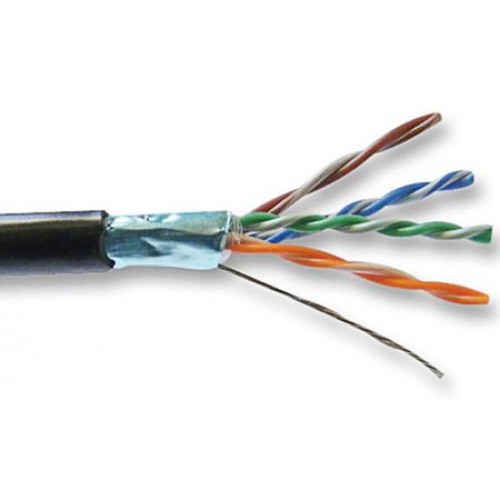

Belden 7929A 24 AWG 4 Pair Cat 5e DataTuff Twisted Pair Cable - Gray - 1000 Foot
- Brands Belden
- Product Code:BL-7929A-1000GY
- Availability:In Stock
-
$1,145.30
24 AWG Bonded-Pairs solid bare copper conductors, polyolefin insulation, overall Beldfoil shield (100% coverage), industrial grade sunlight- and oil-resistant PVC jacket, drain wire, rip cord. Sequential marking at two foot intervals.
Specifications:
- Conductor: 4 pair 24 AWG solid stranding Bare Copper
- Insulation material: Polyolefin
- Outer Shield Material: Beldfoil Aluminum Foil-Polyester Tape
- Outer Jacket Material: Industrial Grade PVC - Polyvinyl Chloride
- Overall Nominal Diameter: 0.265 in.
- Storage Temperature Range: -40°C To +80°C
- Installation Temperature Range: -25°C To +75°C
- Operating Temperature Range: -40°C To +75°C
- Bulk Cable Weight: 32 lbs/1000 ft.
- Max. Recommended Pulling Tension: 40 lbs.
- Min. Bend Radius/Minor Axis: 0.500 in.
- NEC/(UL) Specification: CMR, CMX-Outdoor
- CEC/C(UL) Specification: CMR
- EU Directive 2011/65/EU (ROHS II): Yes
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2002/95/EC (RoHS): Yes
- EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
- EU Directive 2002/96/EC (WEEE): Yes
- EU Directive 2003/11/EC (BFR): Yes
- CA Prop 65 (CJ for Wire & Cable): Yes
- MII Order #39 (China RoHS): Yes
- PMSHA Specification: P-07-KA060003
- Telecommunications Standards: Category 5e - TIA 568.C.2
- Other Specification: NEMA WC-63.1 Category 5e, UL verified to Category 5e
- UL Flame Test: UL1666 Vertical Riser
- CSA Flame Test: FT4
- IEEE Flame Test: 1202
- Suitability - Outdoor: Yes
- Sunlight Resistance: Yes
- Oil Resistance: Yes
- Plenum (Y/N): No
- VP: 70%
- Maximum Delay (ns/100 m): 538 @ 100MHz
- Max. Delay Skew (ns/100 m): 45
- Maximum Conductor DC Resistance @ 20&dg;C (Ohm/100 m): 9.38
- Voltage: 300 V RMS
- Maximum DCR Unbalanced @ 20°C (%): 3
