Belden 7807A Low Loss LMR200 Type 17 AWG 50 Ohm Coax Cable - Black - 1000 Foot
- Brands Belden
- Product Code:BL-7807A-1000
- Availability:In Stock
-
$934.70

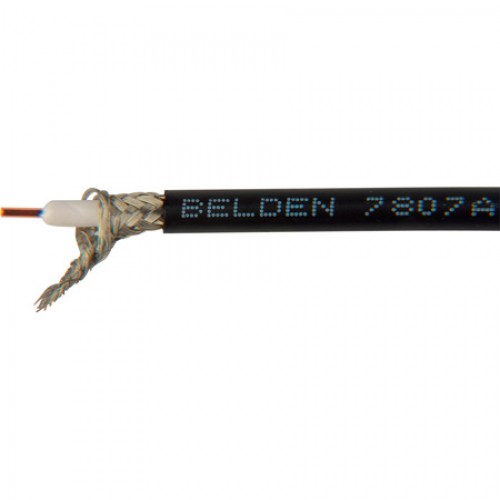

Belden 7807A is a RF 200 Wireless Coax cable with a RG-58/U type, 17 AWG solid .044" bare copper conductor, gas-injected foam HDPE insulation, Duofoil® (100% coverage); tinned copper braid shield (95% coverage), and a polyethylene jacket.
Specifications:
- AWG: 17
-
Conductor Count: 1
- Stranding: Solid
- Material: Bare Copper
- Nominal diameter: 0.044 in
- No of Coax: 1
- Nominal Conductor DCR: 3.3 Ohm/1000ft
- Nominal Outer Shield DCR: 4.2 Ohm/1000ft
- Outer Conductor DCR: 4.2 Ohm/1000ft
- Nominal Characteristic Impedance: 50 Ohm
- Frequency [MHz]: 5-6000 MHz
- Non-UL Temp Rating: 80°C
- Operating Temp Range: -40°C To +75°C
- Bulk Cable Weight: 27 lbs/1000ft
- Max Recommended Pulling Tension: 25.4 lbs
- Min Bend Radius/Minor Axis: 2 in
- RG Type: 58/U Type
-
Series Type: RF 200
Frequency [MHz] Nom. Insertion Loss - 5 MHz 0.75 dB/100ft
- 10 MHz 1.1 dB/100ft
- 30 MHz 1.6 dB/100ft
- 50 MHz 2.1 dB/100ft
- 150 MHz 3.7 dB/100ft
- 220 MHz 4.5 dB/100ft
- 450 MHz 6.5 dB/100ft
- 900 MHz 9.2 dB/100ft
- 1500 MHz 12 dB/100ft
- 1800 MHz 13.2 dB/100ft
- 2000 MHz 14 dB/100ft
- 2500 MHz 15.7 dB/100ft
- 3000 MHz 17.5 dB/100ft
- 4500 MHz 22 dB/100ft
- 5800 MHz 25.2 dB/100ft
- 6000 MHz 26 dB/100ft
Frequency [MHz] Max. Insertion Loss (Attenuation) - 30 MHz 2 dB/100ft
- 50 MHz 2.4 dB/100ft
- 150 MHz 3.9 dB/100ft
- 220 MHz 4.6 dB/100ft
- 450 MHz 6.7 dB/100ft
- 900 MHz 9.5 dB/100ft
- 1500 MHz 12.3 dB/100ft
- 1800 MHz 13.5 dB/100ft
- 2000 MHz 14.4 dB/100ft
- 2500 MHz 16.2 dB/100ft
- 3000 MHz 18 dB/100ft
- 3500 MHz 19.6 dB/100ft
- 4500 MHz 22.9 dB/100ft
- 5800 MHz 26.3 dB/100ft
- 6000 MHz 26.8 dB/100ft
