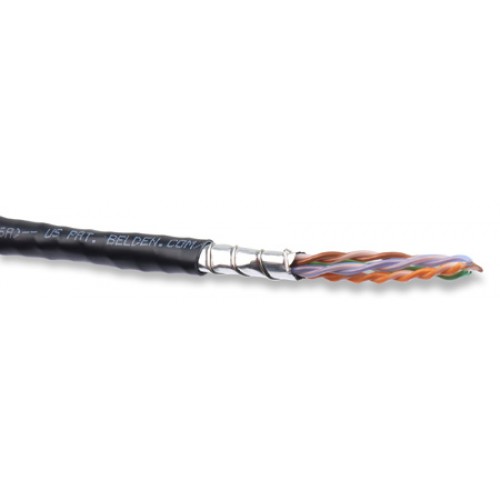

Belden 2183R CMR Riser 4K UL 4299 Certified POH HDBaseT Ethernet Cable-Black
- Brands Belden
- Product Code:BL-2183R-1000BK
- Availability:In Stock
-
$916.80
Belden 2183R cables were designed specifically for optimal performance in 4K HDBaseT transmission. These shielded cables deliver 4K content over 100 meters in a unique, small, sleek design.
Belen 2183R is the industry's only cable to achieve the UL 4299 certification for HDBaseT POH (Power over HBaseT). PoH is similar to PoE (Power over Ethernet), but has unique features specific to professional AV installations that involve HDBaseT. When power is run on a twisted-pair cable, the amount of heat generated inside the cable increases, especially in cable bundles. Cables meeting the UL 4299 standard guarantee fire safety and cable performance while successfully transmitting HDBaseT signals - including 100W of power delivery.
Combined with either standard field-mount plugs or Belden's new REVConnect connectivity system, it is the easiest to install, most reliable HDBaseT cabling solution available!
Features:
- 100% shielding provides protection from noise interference with AV signal
- Single overall shield construction saves significant termination time
- UL Limited Power (LP) rated to 0.6A per conductor
- Interoperable with leading manufacturers' AV equipment
- Up to 25% smaller than Category 7a
- Easy to bend and fit into small spaces
- Resistant to rigors of installation with Bonded-Pair, durable shield and helical drain
- Designed and tested specifically for optimal 4K UHD performance
Specifications:
- Mechanical Characteristics
- Storage Temperature Range: -20°C To +75°C
- Installation Temperature Range: 0°C To +75°C
- Operating Temperature Range: -20°C To +75°C
- UL Temperature Rating: 90°C
- Bulk Cable Weight: 37 lbs/1000 ft.
- Max. Recommended Pulling Tension: 45 lbs.
- Min. Bend Radius/Minor Axis: 1.2 in.
- Min. Bend/Installation: 2.300 in
Electrical Characteristics - Nom. Characteristic Impedance (Ohm): 100.000
- Nom. Mutual Capacitance (pF/ft): 15.000
- Maximum Capacitance Unbalance (pF/100 m): 330
- Nominal Velocity of Propagation (%): 72.000
- Maximum Delay (ns/100 m): 538 @ 100MHz
- Max. Delay Skew (ns/100 m): 45
- Maximum Conductor DC Resistance DCR @ 20°C (Ohm/100 m): 9.38
- Max. Operating Voltage - UL: 300 V RMS
- Maximum DCR Unbalanced DCR Unbalance @ 20°C (%): 3
