Belden 4855R 12G-SDI 75 Ohm 4K UHD Mini Coax Video Cable - Yellow - 1000 Feet

  • Brands Belden
  • Product Code:BL-4855R-1000YW
  • Availability:In Stock
  • $913.20

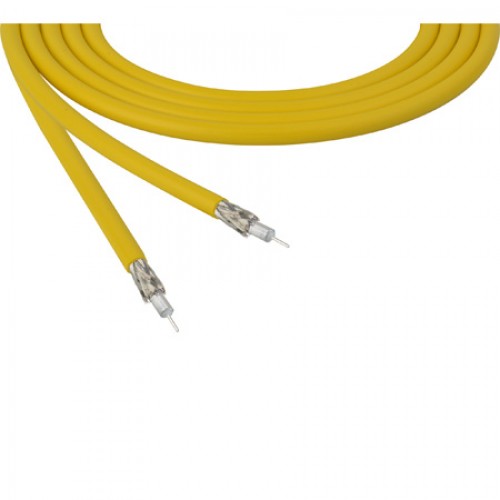

Belden 4855R is a Sub-Miniature12 GHz Coax 4K UHD Precision Video Cable. With 75 Ohm, 23 AWG solid .023" silver plated copper conductor, gas-injected foam HDPE insulation, Duofoil bonded to the core + tinned copper braid shield (95% coverage), and a PVC jacket.

Specifications:

    Mechanical Characteristics
  • Operating Temperature Range: -30°C To +75°C
  • Bulk Cable Weight: 17 lbs/1000 ft.
  • Max. Recommended Pulling Tension: 40 lbs.
  • Min. Bend Radius/Minor Axis: 1.600 in.

    Electrical Characteristics
  • Nom. Characteristic Impedance (Ohm): 75
  • Nom. Inductance (&microH/ft): .107
  • Nom. Capacitance Conductor to Shield (pF/ft): 16.3
  • Nominal Velocity of Propagation (%): 82
  • Nominal Delay (ns/ft): 1.240
  • Nom. Conductor DC Resistance DCR @ 20°C (Ohm/1000 ft): 19.700
  • Nominal Outer Shield DC Resistance DCR @ 20°C (Ohm/1000 ft): 3.900
  • Max. Operating Voltage - UL: 300 V RMS
  • Minimum Return Loss-
  • Start Freq. (MHz): 5.000 / 1600.000 / 4500.000
  • Stop Freq. (MHz): 1600.000 / 4500.000 / 12000.000
  • Min. RL (dB): 23.000 / 21.000 / 15.000

    Frequency [MHz]   Nom. Insertion Loss
  • 1 MHz       0.39 dB/100ft
  • 3.58MHz      0.78 dB/100ft
  • 5 MHz       0.92 dB/100ft
  • 6 MHz       1 dB/100ft
  • 7 MHz       1.08 dB/100ft
  • 10 MHz       1.2 dB/100ft
  • 12 MHz       1.3 dB/100ft
  • 25 MHz       1.8 dB/100ft
  • 55 MHz       2.6 dB/100ft
  • 67.5 MHz       2.83 dB/100ft
  • 71.5 MHz       2.93 dB/100ft
  • 88.5 MHz       3.22 dB/100ft
  • 100 MHz       3.39 dB/100ft
  • 135 MHz       3.84 dB/100ft
  • 143 MHz       4.00 dB/100ft
  • 180 MHz       4.41 dB/100ft
  • 270 MHz       5.44 dB/100ft
  • 360 MHz       6.34 dB/100ft
  • 540 MHz       7.85 dB/100ft
  • 720 MHz       9.09 dB/100ft
  • 750 MHz       9.28 dB/100ft
  • 1000 MHz      10.8 dB/100ft
  • 1500 MHz      13.2 dB/100ft
  • 2000 MHz      15.3 dB/100ft
  • 2250 MHz      16.3 dB/100ft
  • 3000 MHz      19.0 dB/100ft
  • 4500 MHz      23.6 dB/100ft
  • 6000 MHz      27.7 dB/100ft
  • 12000 MHz     41.2 dB/100ft
