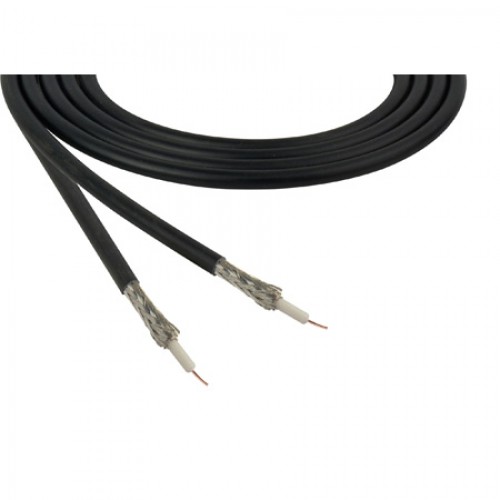

Belden 179DT Digital Video (RG179) Cable - Black - 1000ft

To comfortably support today's broadcast technology, especially HDTV, mobile television broadcast trucks are densely packed with equipment and over-the-road axle weight requirements have become a real concern. To help lighten the trucks load, lessen the amount of space needed, and to improve air-conditioning air flow and gas mileage, Belden offers Brilliance DigiTruck 179DT lightweight RG-179 Type 75-ohm coaxial cable. This new coax weighs 7.25 pounds per 1,000 feet and has a guaranteed return loss of 21dB (minimum) and is sweep tested to 3 GHz.

This mimics the return loss performance of Belden1s most popular Brilliance precision video cables, providing 6dB of RL headroom against the SMPTE 292M specification. 179DT features a highly crush-resistant, foamed high-density polyethylene (FHDPE) dielectric to help ensure the durability of the cable a particularly important characteristic for use on television broadcast trucks.

Specifications:

• Number of Coax: 1
• RG Type: 179U
• AWG: 28.5
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
• Outer Shield Material Trade Name: Duobond Foil
• Outer Jacket Material: PVC - Polyvinyl Chloride
• Plenum (Y/N): N
• Nom. Characteristic Impedance: 75 +/- 1.5Ω

  Frequency [MHz]   Minimum Return (RL)
• 5 - 1600 MHz        23 dB
• 1600 - 4500 MHz      21 dB
• 4500 - 6000 MHz      15 dB
•

  Frequency [MHz]   Nom. Insertion Loss
• 1 MHz       1.18 dB/100ft
• 5 MHz       1.85 dB/100ft
• 6 MHz       1.99 dB/100ft
• 7 MHz       2.15 dB/100ft
• 10 MHz       2.39 dB/100ft
• 12 MHz       2.5 dB/100ft
• 67.5 MHz       5.3 dB/100ft
• 71.5 MHz       5.5 dB/100ft
• 88.5 MHz       6 dB/100ft
• 100 MHz        6.4 dB/100ft
• 135 MHz       7.2 dB/100ft
• 143 MHz       7.5 dB/100ft
• 180 MHz       8.3 dB/100ft
• 270 MHz       10.2 dB/100ft
• 360 MHz       11.8 dB/100ft
• 540 MHz       14.6 dB/100ft
• 720 MHz       17 dB/100ft
• 750 MHz       17.4 dB/100ft
• 1000 MHz       20.2 dB/100ft
• 1500 MHz       24.8 dB/100ft
• 2000 MHz       28.9 dB/100ft
• 2250 MHz       30.9 dB/100ft
• 3000 MHz       35.9 dB/100ft
• 4500 MHz       45 dB/100ft
• 6000 MHz       58 dB/100ft
