Belden 8723ZH 0601000 8723ZH Multi-Conductor - GreenChoice 1000 Foot Roll
- Brands Belden
- Product Code:BL-8723ZH0601000
- Availability:In Stock
-
$760.70

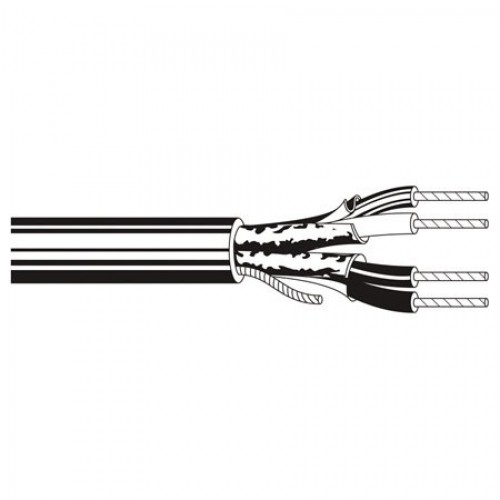

The 8723ZH is a 22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, twisted pairs, individually Beldfoil shielded (100% coverage), 24 AWG stranded tinned copper drain wire, LSZH jacket GreenChoice Multi Conductor Cable.
Specifications:
- Conductor: 2 pair 22 AWG 7x30 stranding Tinned COpper
- Insulation Material: 0.009" thick Polypropylene
- Inner Shield Material Beldfoil (Z-Fold) Aluminum Foil-Polyester Tape (24 AWG drain wire)
- Outer Jacket Material: Low Smoke Zero Halogen
- Overall Nominal Diameter: 0.196 in.
- Operating Temperature Range: -20°C To +105°C
- UL Temperature Rating: 105°C
- Bulk Cable Weight: 24 lbs/1000 ft.
- Max. Recommended Pulling Tension: 42 lbs.
- Min. Bend Radius/Minor Axis: 2 in.
- NEC/(UL) Specification: CMG-LS
- CEC/C(UL) Specification: CMG-LS
- EU Directive 2011/65/EU (ROHS II): Yes
- EU CE Mark: Yes
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2002/95/EC (RoHS): Yes
- EU RoHS Compliance Date (mm/dd/yyyy): 11/13/2006
- EU Directive 2002/96/EC (WEEE): Yes
- EU Directive 2003/11/EC (BFR): Yes
- CA Prop 65 (CJ for Wire & Cable): Yes
- MII Order #39 (China RoHS): Yes
- UL Flame Test: UL1685 FT4 Loading, Limited Smoke
- C(UL) Flame Test: FT4
- Suitability - Indoor: Yes
- Non-halogenated: Yes
- Plenum (Y/N): No
- Impedance: 52 Ω
- Inductance: 0.17 µH/ft
- Conductor Capacitance: 33 pF/ft
- Conductor and Shield Capacitance: 62 pF/ft
- Velocity of Propagation: 66%
- Conductor DC Resistance @ 20°C: 14.7& Omega;/1000 ft
- Voltage: 300 V RMS
- Current: 2.3 Amps per conductor @ 25°C
