Belden 8421 060250 Coaxial Cables 25AWG 1C Shield Spool - Chrome - 250 Foot
- Brands Belden
- Product Code:BL-8421-060250
- Availability:In Stock
-
$349.08

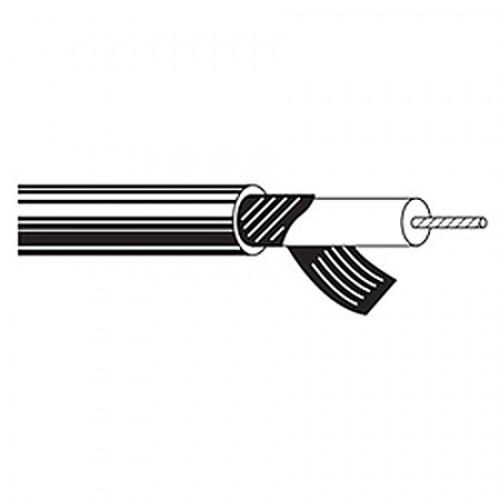

The 8421 is a 25 AWG Stranded (7x33) conductor, (3) TC, (4) TCCS, FPE insulation, tinned copper spiral wrapped shield (85% coverage), PVC jacket Coax - Audio Connecting Cable.
Specifications:
- Conductor: 1 Coax 25 AWG 7x33 stranding Tinned Copper/Tinned Copper Covered Steel
- Insulation Material: Foam Polyethylene
- Outer Shield Material: Tinned Copper
- Outer Jacket Material: Polyvinyl Chloride
- Overall Nominal Diameter: 0.180 in.
- Operating Temperature Range: -20°C To +80°C
- Non-UL Temperature Rating: 80°C
- Bulk Cable Weight: 15 lbs/1000 ft.
- Max. Recommended Pulling Tension: 5 lbs.
- Min. Bend Radius (Overall): 2 in.
- EU Directive 2011/65/EU (ROHS II): Yes
- EU CE Mark: Yes
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2002/95/EC (RoHS): Yes
- EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
- EU Directive 2002/96/EC (WEEE): Yes
- EU Directive 2003/11/EC (BFR): Yes
- CA Prop 65 (CJ for Wire & Cable): Yes
- MII Order #39 (China RoHS): Yes
- Plenum (Y/N): No
- Impedance: 80ω
- Capacitance: 16 pF/ft
- Conductor DC Resistance @20°C: 32.27Ω/1000 ft
- Voltage: 300 V RMS
- Current: 1.9 Amps per Conductor @ 25°C
