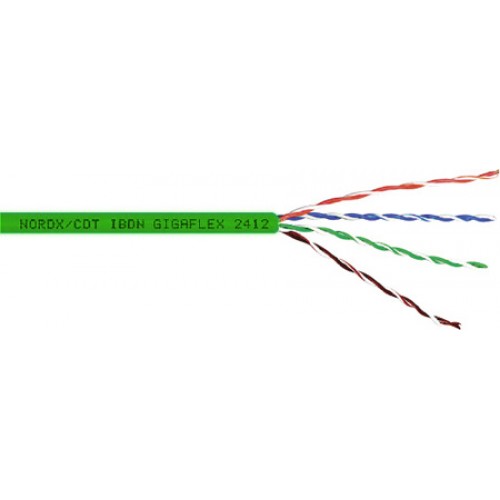

Belden 2412 23 AWG Enhanced Catagory 6 Nonbonded-Pair Cable (1000 ft) Green
- Brands Belden
- Product Code:BL-2412-1000GN
- Availability:In Stock
-
$334.60
Belden 2412 23 AWG solid bare copper conductors, polyolefin insulation, film tape separator, PVC jacket with ripcord, sequential footage marking every two feet.
Specifications:
- Environmental Space: Riser
- Suitable Applications: Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM
- Conductor Count: 8
- Total Number of Pairs: 4
- Conductor Size: 23 AWG
- Material: Bare Copper
- Installation Temp Range: 0°C To +50°C
- UL Temp Rating: 75°C
- Storage Temp Range: -20°C To +75°C
- Operating Temp Range: -20°C To +75°C
- Bulk Cable Weight: 22 lbs/1000ft
- Max Recommended Pulling Tension: 25 lbs
- Min Bend Radius/Minor Axis: 1.0 in
-
Min Bend Radius/Installation: 2.25 in
- NEC Articles: 800
- NEC/(UL) Specification: CMR
- CEC/C(UL) Specification: CMR
- ISO/IEC Compliance: 11801 ed 2.2 (2011) Class E
- CPR Euroclass: Eca
- Data Category: Category 6
- ANSI Compliance: S-116-732-2013 Category 6, ANSI/NEMA WC-66 Category 6
- Telecommunications Standards: ANSI/TIA-568-C.2 Category 6
- IEEE Specification: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
- Third Party Performance Verification: Category 6
-
Frequency [MHz] Max. Insertion Loss (Attenuation) - 1 MHz 2.0 dB/100m
- 4 MHz 3.7 dB/100m
- 8 MHz 5.2 dB/100m
- 10 MHz 5.8 dB/100m
- 16 MHz 7.4 dB/100m
- 20 MHz 8.3 dB/100m
- 25 MHz 9.3 dB/100m
- 31.25 MHz 10.4 dB/100m
- 62.5 MHz 15.0 dB/100m
- 100 MHz 19.3 dB/100m
- 155 MHz 24.6 dB/100m
- 200 MHz 28.3 dB/100m
- 250 MHz 32.1 dB/100m
- 300 MHz 35.6 dB/100m
- 350 MHz 38.9 dB/100m
- 400 MHz 42.0 dB/100m
- 450 MHz 45.0 dB/100m
- 500 MHz 47.9 dB/100m
- 550 MHz 50.6 dB/100m
