Belden 533945 New-Gen Coaxial RG6 Braided Shield Cable - 1000 Foot
- Brands Belden
- Product Code:BL-533945-1000
- Availability:In Stock
-
$315.50

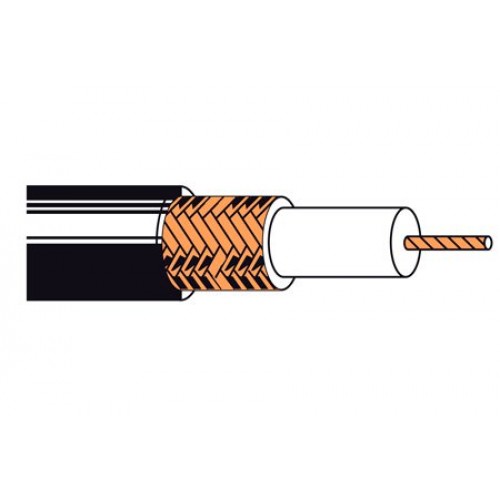

Belden 533945 New Gen coaxial features Bare Copper wire to carry video signals or used for powering devices such as cameras. Othe applications include Surveillance & CCTV Cable and Analog Video. RG6, Rated-CMG, 18 AWG solid bare copper, foamed polyolefin core, 95% bare copper braid, PVC jacket.
Specifications:
- AWG: 18
- Stranding: Solid
- MAterial: Bare Copper
- Nominal Diameter: 0.04 inch
- Number of Coax: 1
- Nominal Capacitance Conductor to Shield: 16.3 pF/ft
- Nominal Characteristic Impedance: 75 Ohm
- UL Voltage Rating: 300 V RMS
- UL Temp Rating: 75°C
- Operating Temp Range: -40°C to +75°C
- Bulk Cable Weight: 36 lbs/1000ft
- Max Recommended Pulling Tension: 69 lbs
- Min Bend Radius/Minor Axis: 2.75 in
- NEC Articles: 800
- NEC/(UL) Specification: CMG
- CEC/C(UL) Specification: CMG
- CPR Euroclass: Eca
- PMSHA Specification: P-07-KA110035-MSHA
- RG Type: 6/U Type
-
Series Type: Series 6
Frequency [MHz] Nom. Insertion Loss - 1 MHz 0.24 dB/100ft
- 10 MHz 0.72 dB/100ft
- 50 MHz 1.5 dB/100ft
- 100 MHz 2 dB/100ft
- 200 MHz 2.9 dB/100ft
- 400 MHz 4.2 dB/100ft
- 700 MHz 5.6 dB/100ft
- 900 MHz 6.4 dB/100ft
- 1000 MHz 7 dB/100ft
