Belden 1829R 010U1000 18 AWG Solid Copper-Covered Steel Conductor DBS Coax Cable
- Brands Belden
- Product Code:1829R-010U1000
- Availability:In Stock
-
$183.70

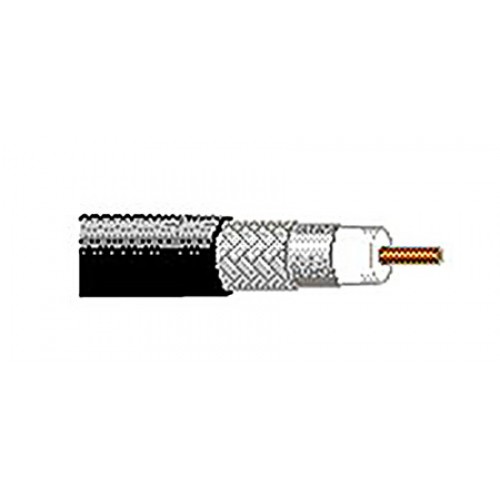

The 1829R 010U1000 is 18 AWG solid bare copper-covered steel conductor coax cable with gas-injected foam polyethylene insulation, Duobond II (100% coverage) and an aluminum braid shield (60% coverage) and PVC jacket.Suitable Applications: Satellite, DBS, TV, Antenna.
This is a highly versatile Coax cable and can accomodate many 75 ohm Coax/RF/CCTV/Antenna situations. Some of the connectors qre required but we have offered up BNC, F and RCA styles that fir the 1829R.
Specifications:
- Conductor: 18 AWG Solid Stranding Bare Copper Covered Steel
- Insulation material:
- Gas-injected FPE - Foam Polyethylene
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Overall Nominal Diameter: 0.275 in.
- Installation Temperature Range: -30° C To +80° C
- Operating Temperature Range: -40° C To +80° C
- Bulk Cable Weight: 29 lbs/1000 ft.
- Max. Recommended Pulling Tension: 126 lbs.
- Min. Bend Radius/Minor Axis: 2 in.
- CSA Flame Test: FT4
- Plenum (Y/N): No
- Nom. Characteristic Impedance: Impedance (Ohm): 75; Tolerance (Ohms): ± 3
- Nom. Inductance (µH/ft): .097
- Capacitance (pF/ft): 16.2
- Nominal Velocity of Propagation: 83 %
- Nominal Delay (ns/ft): 1.2
- Nom. Conductor DC Resistance @ 20° C (Ohm/1000 ft): 28.0
- Nominal Outer Shield DC Resistance @ 20° C (Ohm/1000 ft): 9
- Voltage: 300 V RMS
