Belden 6200UE 010U250 Multi-Conductor Commercial Audio Bulk Cable FLRST 250 Foot
- Brands Belden
- Product Code:BL-6200UE-010U25
- Availability:In Stock
-
$80.48

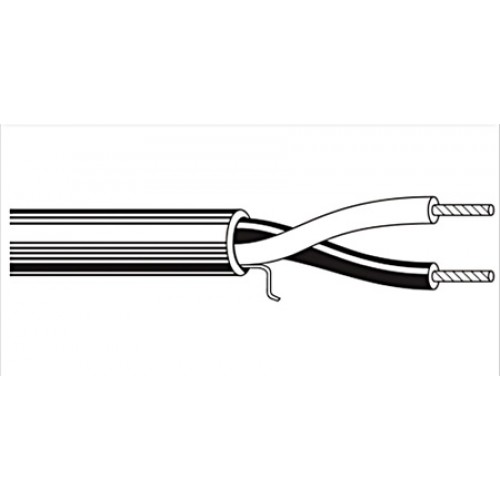

The 6200UE 010U250 is a Security & Commercial Audio Cable, Plenum-CMP 2-16 AWG stranded bare copper conductors with Flamarrest insulation, Flamarrest jacket with ripcord.
Specifications:
- Conductor: 2 Conductors 16 AWG, 19x29 stranding bare copper
- Insulation Material: Flamarrest Low Smoke Polyvinyl Chloride
- Operating Temperature Range: 0°C To +75°C
- UL Temperature Rating: 75°C
- Bulk Cable Weight: 24 lbs/1000 ft.
- Max. Recommended Pulling Tension: 60.800 lbs.
- Min. Bend Radius/Minor Axis: 1.750 in
- NEC/(UL) Specification: CMP
- NEC Articles: 800
- CEC/C(UL) Specification: CMP
- EU Directive 2011/65/EU (ROHS II): Yes
- EU CE Mark: Yes
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2002/95/EC (RoHS): Yes
- EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
- EU Directive 2002/96/EC (WEEE): Yes
- EU Directive 2003/11/EC (BFR): Yes
- CA Prop 65 (CJ for Wire & Cable): Yes
- MII Order #39 (China RoHS): Yes
- UL Flame Test: NFPA 262
- CSA Flame Test: FT6
- Suitability - Indoor: Yes
- Non-Plenum Number: 5200UE
- Inductance: 0.145 µH/ft
- Capacitance: 36.5 pF/ft
- DC Resistance @20°C: 3.8 Ohm/1000 ft
- Voltage: 300 V RMS
