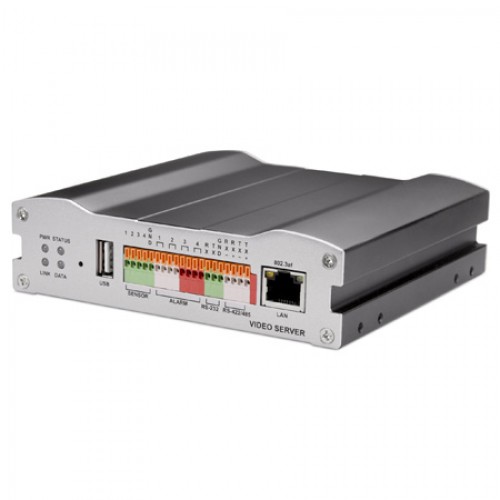

Marshall VS-14E 4 Channel CVBS (D1) Encoder with CVBS/IP Quad-Split Output
- Brands Marshall Electronics
- Product Code:MAR-VS-14E
- Availability:In Stock
-
$719.00
VS-14E from Marshall is a 4 channel CVBS (D1) Encoder with CVBS/IP quad-split output.
Features:
- USB Recording
- Watchdog for System Recovery
- RS-232, RS-422/485 Communication
- Motion Detection
- 4CH Sensor Input / 4CH Alarm Output
- Adjustable Video Bit Rate: 32kbps ~ 16Mbps
- Adjustable Serial Data I/O: 2,400bps ~ 115,200bps
- Ethernet 10/100/1000 Base ƒ_" T (RJ-45)
- Various Protocols: TCP/IP, Multicast, UDP, HTTP, SMTP, FTP, DHCP, DNS, Dynamic DNS, RTP, RTSP, SNMP
- Full Technical Support with SDK & API
Specifications:
- Video
- Compression: H.264, MJPEG
- Framerate: Max 30fps @ 720x480, Max 25fps @ 720x576
- Bitrate: Primary: 32Kbps ~ 4Mbps (each ch), Secondary: 32Kbps ~ 1Mbps (each ch)
- Resolution: 352x240 ~ 720x480 (NTSC), 352x288 ~ 720x576 (PAL)
- Streaming: Primary: H.264, Secondary: H.264/MJPEG
- Burn-in OSD: Multi-lingual
- Input: 4 x Composite (1 Vpp 75 Ohm, BNC)
- Output: 1 x Composite Switchable Individual or Quad Out (1 Vpp 75 Ohm, BNC)
- Network
- Interface: 1 x Ethernet 10/100/1000base-T (RJ-45)
- Protocol: IPv4/v6, TCP, UDP, IGMP(Multicast), ICMP, DHCP, HTTP, HTTPS, RTP,RTSP, FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Confi guration, NTP,
- Security: Password protection, IP address filtering, HTTPS encryption
- Application Programming Interface: MEI Protocol/SDK, ONVIF, PSIA, MPEG-TS
- Audio
- Compression: G.711 / AAC
- Sample rate: G.711: 8KHz, AAC: 32KHz
- Bitrate: G.711: 64Kbps, AAC: 64Kbps/128Kbps
- Streaming: Full duplex
- Input: 1 x Line-In (mono, mini-stereo type)
- Output: 1 x Line-Out (mono, mini-stereo type)
- Event and Alarm
- Event sources: Motion, Sensor input, video loss, Client disconnection
- Event actions: Notification (E-mail), FTP, PTZ preset, Alarm control, Recording General
- General
- Housing: Aluminum
- Certifications: CE, FCC, KC, ROHS
- External devices: 2 x Sensor-In (dry contact, NO/NC)
- 2 x Alarm-Out (dry contact, NO)
- Edge storage: 1 x USB 2.0 port
- Power Supply: Min DC12V/TBD, PoE (Power over Ethernet): 802.3af
- Power Consumption: DC12V/PoE: Max 7.2W
- Operating Temp:. -10°C ~ 50°C (14°F ~ 122°F) / 20% ~ 80% RH
- Dimension: 134.08(W) X 125.5(D) X 36.87(H)mm
- Weight: 480g
