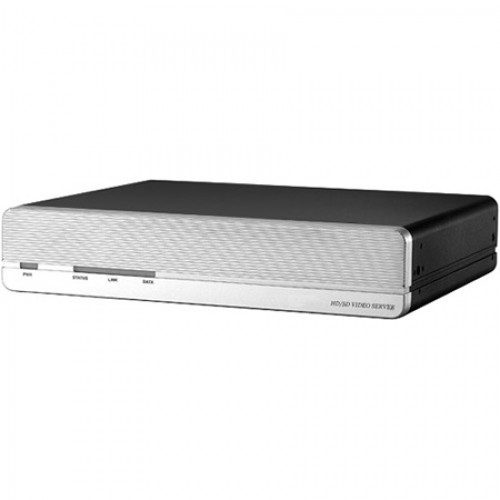

Marshall VS-104-3GSDI 1080p/60 FullHD Video Encoder/D with Stereo Embedded

Features:

• PoE+ (Power Over Ethernet 802.3af)
• USB Recording
• Watchdog for System Recovery
• RS-232, RS-422/485 Communication
• Motion Detection
• 2CH Sensor Input / 2CH Alarm Output
• Adjustable Video Bitrate: 32Kbps ~ 16Mbps for Primary Stream, 32Kbps ~ 4Mbps for Secondary Stream (3 available)
• Adjustable Video Data Bandwidth: 2,400bps ~ 115,200bps
• Adjustable Serial Data I/O, 2,400bps~115,200bps supplied
• Various Protocols: TCP/IP, Multicast, UDP, HTTP, SMTP, FTP, DHCP, DNS, Dynamic DNS, RTP, RTSP, SNMP
• SDK & API available on request

Specifications:

• General
• Event sources: Motion, Sensor input, Video loss, Client disconnection
• Event actions: Notification (E-mail), FTP, PTZ preset, Alarm control, Recording
• Housing: Aluminum
• Certifications: CE, FCC, KC, ROHS
• External devices: 2 x Sensor-In (dry contact, NO/NC); 2 x Alarm-Out (dry contact, NO); 1 x RS-232 port; 1 x RS-422/485 port; 1 x Buzzer (88dB min)
• Edge storage: 2 x USB 2.0 port
• Power supply: Min DC12V 5A, PoE+ (Power over Ethernet): 802.3at
• Power Consumption: DC12V/PoE+ / Max:13.4V
• Operating Temp.: -10&degC ~ 50&degC / 14&degF ~ 122&degF
• Dimension(W x L x H): 8.5 in x 7 in x 1.7 in (215 mm x 184.2 mm x 44 mm)
• Weight: 2 lbs (940g)

  Audio
• Compression: G.711 / AAC
• Sample Rate: G.711: 8KHz, AAC: 32/44.1/48KHz
• Bitrate G.711: 64Kbps, AAC: 64Kbps/128Kbps
• Streaming: Full duplex
• Input: 1 x Line-In (stereo, mini-stereo type)
• Output: 1 x Line-Out (stereo, mini-stereo type)

  Video
• Compression: H.264, MJPEG
• Framerate: Max 60fps @ 1920x1080
• Bitrate Primary: 32Kbps ~ 16Mbps, Secondary: 32Kbps ~ 4Mbps
• Resolution: 352x240 ~ 1920x1080
• Streaming: Primary: H.264, Secondary x 3: H.264/MJPEG
• Burn-in OSD: Multi-lingual
• Input/Output: 1 x HDMI (Type A), Input/Output configurable; 1 x Composite (BNC), Input/Output configurable; 1 x 3G-SDI (BNC), Input/Output configurable

  Network
• Interface: 2 x Ethernet 10/100/1000Base-T (RJ-45)
• Protocol: IPv4/v6, TCP, UDP, IGMP(Multicast), ICMP, DHCP, HTTP, HTTPS, RTP, RTSP, FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Configuration, NTP, DDNS
• Security: Password protection, IP address filtering, HTTPS encryption
• Application Programming Interface: MEI Protocol/SDK, ONVIF, PSIA

Item Includes:

• Power supply
