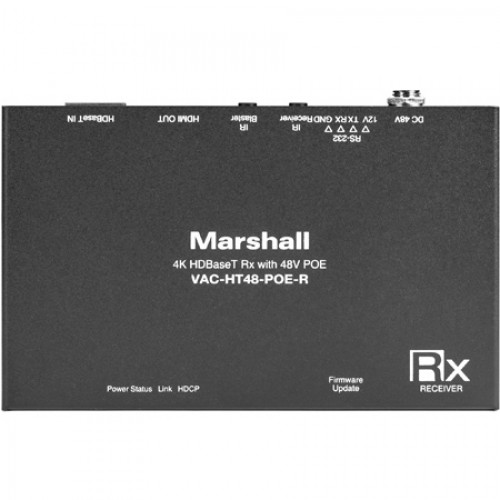

Marshall VAC-HT48-POE-R HDBaseT Receiver - Cat6 HDBaseT Signal to HDMI Video
- Brands Marshall Electronics
- Product Code:MAR-VACHT48-POER
- Availability:In Stock
-
$499.00
The VAC-HT48-POE-R 4K HDBaseT Receiver converts HDBaseT to HDMI and provides power & control options for local & remote devices such as the Marshall MAR-CV612HT-4K PTZ camera .
The VAC-HT48-POE-R supports HDMI uncompressed video, audio, Bi-directional IR, RS-232/485 communications. It provides POE (13.5 Watts) power for the remote device and 12VDC / 0.9A for local accessories.
Note: Distance depends on the quality of the CAT.X cable. HDMI cables can only cover relatively short distances. The VAC-HT48-POE-R guarantees up to UHD 3840 x 2160p 29.97Hz video over Cat.6a/7 cable for distances up to 100m (328 Feet)
Features:
- HDMI 1.4
- POE (Watts TBD)
- HDCP & EDID Transparent
- Auto equalization
- Uncompressed 7.1ch digital HDMI over Cat5e/6/7 cable transmission
- DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
- Bi-directional IR path-through signal from 20KHz to 60KHz
- Wall mounting housing design for easy and secure installation
Specifications:
- Function
- HDMI compliance: 1.4
- HDCP compliance: Yes
- Video bandwidth: Single-link 340MHz (10.2Gbps)
- Video support: 1280 x 720p 50/50.94Hz; 1920 x 1080i 50/59.94Hz; 1920 x 1080p 50/59.94Hz; 3840 x 2160 25/29.97Hz
- HDMI over UTP: Cat.5e/6: up to 1920 x 1080p 59.94Hz 100m; Cat.6: up to 3840 x 2160p 29.97Hz 70m; Cat.6a/7: up to 3840 x 2160p 29.97Hz 100m
- Audio support: 8-channel
- Equalization: Auto
- ESD protection (1) Human body model - ±19kV (air-gap discharge) & ±12kV (contact discharge); (2) Core chipset - ±8kV
- IR pass-thru: Bi-directional
- RS-232 & RS-485 support: Yes
- POE support: Yes
- Input connectors: 1x RJ-45
- Output connectors: 1x HDMI; 1x 3.5mm (IR Blaster)
- HDMI source control: Via IR pass through or RS232/485 control
- HDMI connector: Type A (19-pin female)
Mechanical - Housing: Metal enclosure / Wall mount
- Dimensions (L x W x H): 5" x 3" x 1" (126 x 77 x 25mm)
- Weight: 5.3oz (215g)
- Fixedness: Wall-mounting case with screws
- Power supply: 48V 0.83 Amps DC
- Power consumption: 32 Watts (max)
- Operation temperature: 0 - 40°C (32 - 104°F)
- Storage temperature: -20 - 60°C (-4 - 140°F)
- Relative humidity: 20 - 90% RH (no condensation)
Item Includes:
- 1x VAC-HT48-POE-R
- 1x IR receiver
- 1x 100-240V 50/60Hz to 48VDC power adaptor with C7 power cord
- 1x 4-pin female terminal block (for RS232/485 and 12VDC accessory power output)
