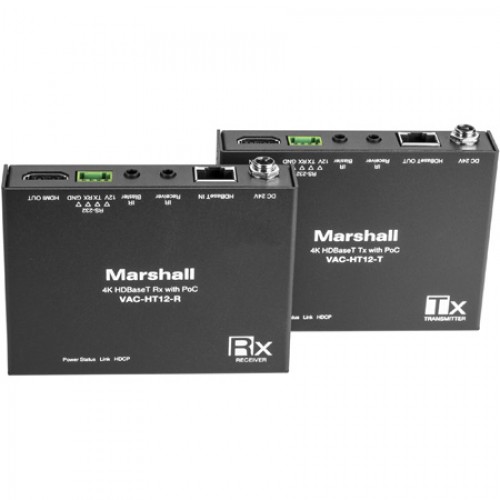

Marshall VAC-HT12-KIT HDbaseT Transmitter and Receiver Kit

The Marshall VAC-HT12-KIT 4K HDBaseT Extender Kit allows you to extend 4K HDMI signals, RS232 and infrared
control signals up to 100m (328 ft). The VAC-HT12-KIT consists of two units: the VAC-HT12-T Transmitter and VAC-HT12-R Receiver. The VAC-HT12-T combines HDMI with IR remote control & RS232 over a single CAT5e/6/6a/7 cable. The VAC-HT12-R receives and separates HDMI, IR remote control & RS232 signals and provides
12VDC (max 1A) accessory power. HDCP (High-bandwidth Digital Copy Protection) and EDID (Extended Display Identification Data) is
passed transparently.

Features:

• Supports HDMI Deep Color, full 3D & [email protected] fps (HDBaseT)
• Can extend 4K30 4:4:4 8-bit or 4K60 4:2:0 8-bit up to 100M via CAT6a/7 cable, 1080p30 4:2:2 12/16-bit up to
• 100M via CAT5e/6 cable or 1080p30 to 4K30 4:4:4 8-bit and 4K60 4:2:0 8-bit up to 70M via CAT5e/6 cable
• Supports PoC(Power over Cable) which can power both units from TX or RX side with power supply
• HDCP & EDID pass through
• CEC support
• Auto equalization
• Pure unaltered and uncompressed 7.1ch digital HDMI over CAT5e/6/6a/7 cable transmission
• DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
• Supports full frequency IR signal from 20KHz to 60KHz
• Bi-directional IR path-through
• Full duplex RS-232 control up to 115,200 bps through connector
• Wall mounting housing design for easy and secure installation
• 12VDC 1A power available at both Tx and Rx for cameras, controllers & accessories

Specifications:

• HDMI compliance: HDMI 1.4 full 3D & [email protected]
• Video bandwidth: Single-link 340MHz [10.2Gbps]
• SDI: 480i/576i
• HD: 720p50/59.94/60 1080i50/59.94/60 1080p23.98/24/25/29.97/30
• 3G: 1080p50/59.94/60
• 4K: 3840x2160/29.97p/25p
• Audio support: Surround sound [up to 7.1ch) or stereo digital audio
• Equalization: Auto
• Input TMDS signal: 1.2 Volts [peak-to-peak]
• Input DDC signal: 5 Volts [peak-to-peak, TTL]
• ESD protection: [1] Human body model - ±19kV [air-gap discharge] & ±12kV [contact discharge] [2] Core chipset - ±8kV
• PCB stack-up: 6-layer board [impedance control - differential 100Ω single 50Ω]
• IR pass-thru: Bi-directional
• RS-232 support: Yes
• PoC support: Yes
• Input: 1x HDMI / 1x 3.5mm IR RX 1x RJ-45 / 1x 3.5mm IR RX
• Output: 1x RJ-45 / 1x 3.5mm IR TX 1x HDMI / 1x 3.5mm IR TX
• In / Out: 1x RS-232 1x RS-232
• HDMI source control: Controllable via IR pass-through from RX to TX with IR extenders
• HDMI connector: Type A [19-pin female]
• Min DIN connector: DIN-9
• RJ-45 connector: WE/SS 8P8C (Reverse Mode)

Item Includes:

• VAC-HT12-T Transmitter and VAC-HT12-R Receiver
• 1x IR blaster
• 1x IR receiver
• 1x DC24V 2.7A in-line power supply with C7 power cord
• 1x User Manual
• 2x power adapter to 2-pin terminal block
• 2x 4-pin female terminal block
