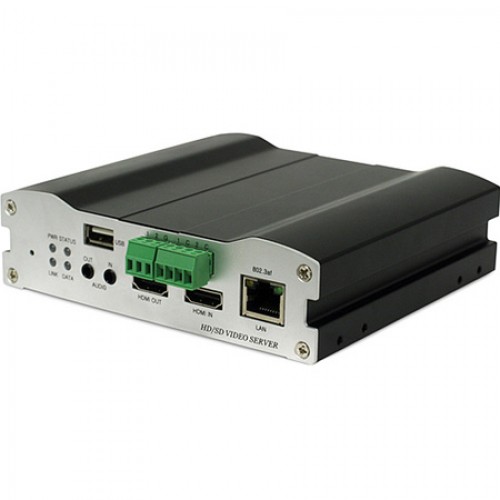

Marshall VS-102-HDSDI 2.0 MP High Resolution Encoder/Decoder w/HD-SDI
- Brands Marshall Electronics
- Product Code:VS-102-HDSDI
- Availability:In Stock
-
$2,059.00
The Marshall VS-102-HDSDI is a High Definition Video Server that allows real-time transmission of an SD/HD-SDI, HDMI, or NTSC/PAL composite video signal along with bi-directional AAC encoded high definition stereo audio over standard IP networks and the internet. The Marshall VS-102-HDSDI incorporates advanced H.264 and MJPEG compression technology. This allows 50% more compression capacity over an existing IP Network, while providing optimal video transmission quality even in networks with limited bandwidth.
The VS-102-HDSDI may be configured to operate as a Point-to-Point talent monitoring system. For example, the unit can operate as an encoder to compress and transmit A/V data over a LAN to another VS-102-HDSDI located in a Green Room or other location. The other unit can act as a decoder which receives the compressed data through the LAN and restores the data to its' original high definition state. Additionally, other computers or VS-102-HDSDI decoders connected to the same network can monitor both the audio and video in multiple locations throughout a venue such as dressing rooms, stage manager, or box office at the same time. When properly configured, the VS-102-HDSDI may be simultaneously monitored through the internet.
Features:
- High Quality AV Encoder / Decoder (Selectable)
- Full HD resolution 1080p Encoding / Decoding
- Up to 30fps @ 1920 x 1080 streaming
- H.264/H.264 & H.264/MJPEG Dual Streaming
- Two-Way Audio Communication
- Mono Codec G.711 for Security applications
- Stereo Codec AAC for Broadcast applications
- HD-SDI Video Input / Output (VS-102-HDSDI only)
- HDMI Video Input / Output
- Composite Video Input / Output
- Audio Input / Output
- Instant Recording to an optional USB drive (USB 2.0)
- Supports DDNS (Dynamic Domain Name Server)
- Built-in PoE (Power Over Ethernet :802af)
- RS-232 control built-in
- RS-422/485 control built-in
- 2 Sensor inputs
- 2 Alarm outputs
- Watchdog for system recovery
- Integrated Video Motion Detection
- Transmission of Video Data through FTP server
- Wide Range of Video Bit Rate Control (32kbps ' 8Mbps)
- PSIA and ONVIF compliant
